Robotic arms

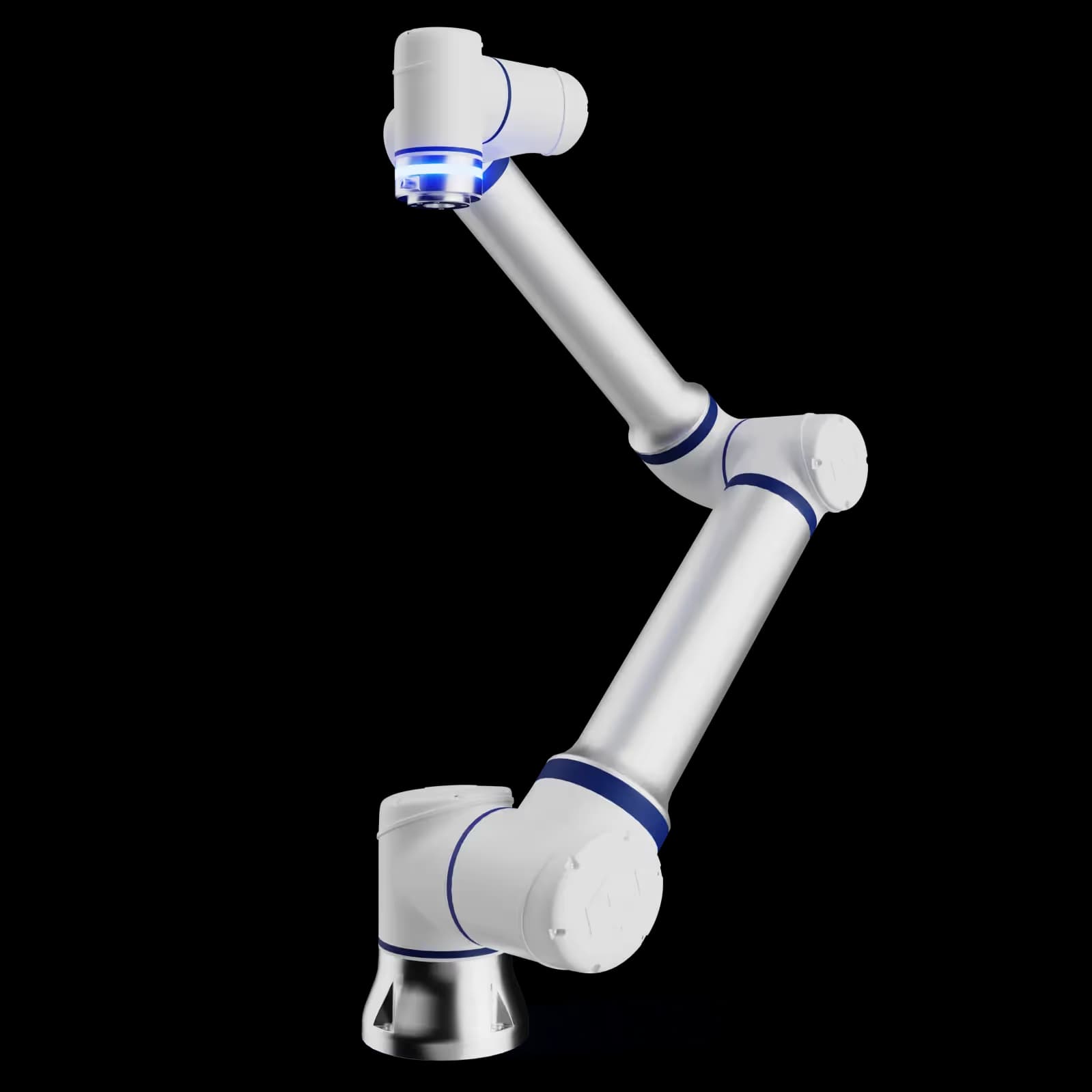

CS612
Elite RobotsPrice on request
Payload12 kg
Reach1304 mm
Repeatability+/- 0.05 mm
Axes6 axes
Typical TCP speed3.4 m/s
IP ratingIP65, IP68 optional
Temperature range-10 to 50 °C
Relative humidity<90%, non-condensing
Typical power usage435 W
Tool I/O4 configurable DI, 4 configurable DO, 1 AI, 1 AO
Tool power0 / 12 V / 24 V, 3 A / 2 A / 1 A
CommunicationRS485, Modbus RTU
FootprintØ190 mm
Robot weight34 kg
Typical applicationsMachine tending, packing, palletizing, mobile automation with AGVs
Source: manufacturer. Checked at 2026-07-17.
